Series 1 HD Bypass Hardware Kit with Soft Close & Soft Open

Series 1 Heavy-Duty Bypass Hardware Kit with Soft Close & Soft Open

Give your sliding bypass doors smooth, controlled movement in both directions. The Series 1 kit includes soft close and soft open for each door, with heavy-duty aluminum tracks and 4-wheel ball-bearing hardware for doors weighing up to 187 lbs each.

Smooth Operation. Heavy-Duty Support.

• Soft close: Gently slows the door and pulls it into its final closed position.
• Soft open: Gently slows the door as it reaches its open position.
• Secure tracking: Twin-channel tracks with V-shaped rails help keep doors on track.
• Flexible fit: Two separate extruded aluminum tracks can be cut to suit your installation.

Door & Track Specifications

• Maximum door weight: 187 lbs per door
• Door thickness: 1 3/8" to 1 3/4"
• Minimum door width for soft close or soft open: 30"
• Each track: 1 1/8" high × 1 3/4" wide

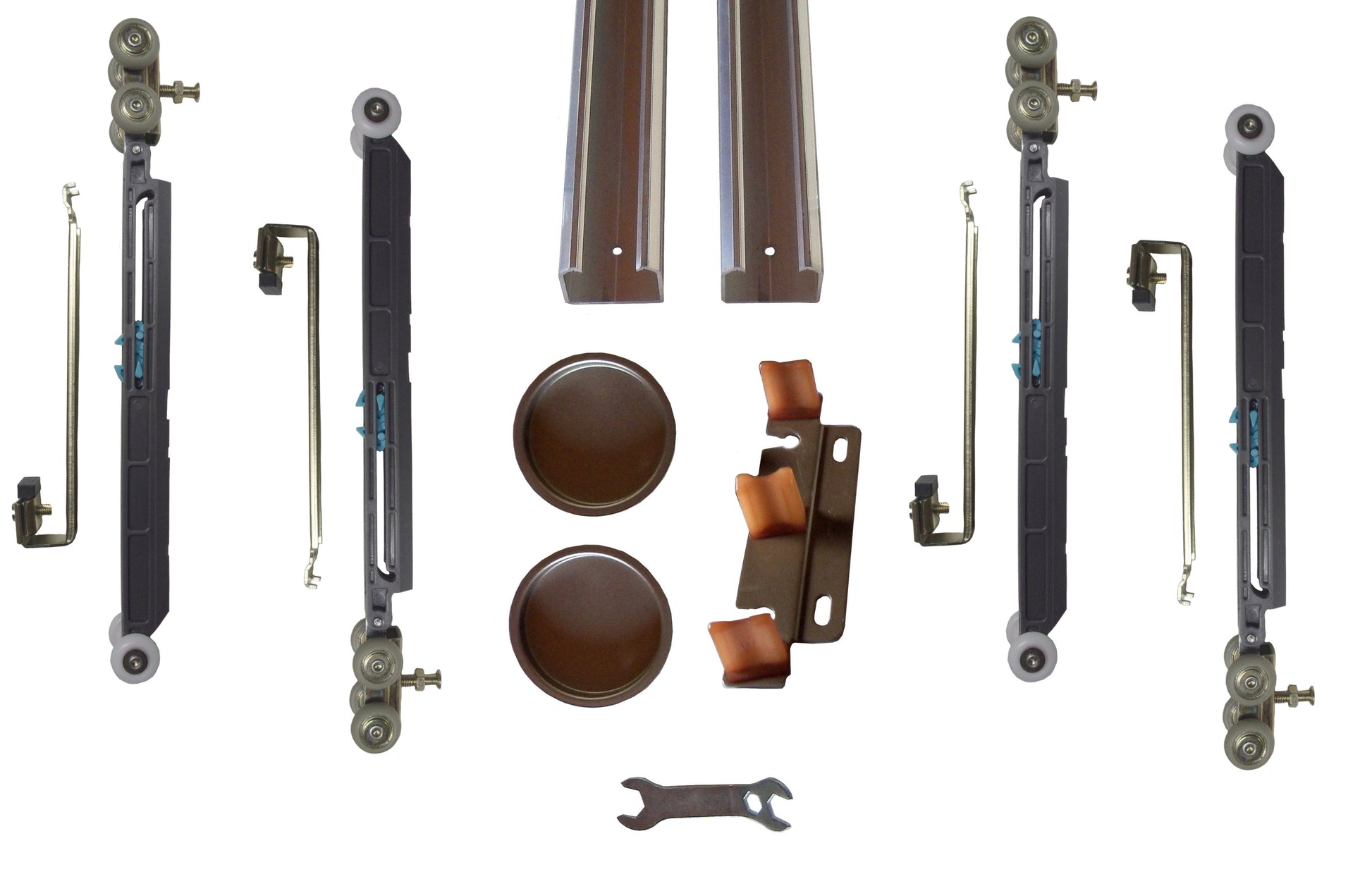

What's Included

• 2 heavy-duty aluminum double-box tracks
• 2 soft-close and 2 soft-open mechanisms
• 1 adjustable floor guide, adjustable from 3/4" to 1 3/4"
• 2 flush cups
• All screws and a wrench

Before You Install

Plan for a slight door overlap of up to 1" and trim the tracks as needed. The former 96" track is now supplied at 94" to reduce shipping costs; this size is already shortened and does not need the overlap-related trim described above.

Optional Add-On: HBP Bottom Track with Door Alignment Rollers

Help reduce door sway, rubbing, and misalignment with a bottom guide track. Rollers attach to the bottom of each door and travel within built-in guide channels to keep doors aligned.

• Low-profile size: 5/16" high × 2 11/16" wide
• Compatibility: HBP Series 1 and Series 2 bypass hardware
• Additional use: Double pocket doors that slide past each other into the same side of the wall

Optional add-on; not included in the standard kit.
