Bypass Hardware Kits

Heavy-Duty Bypass Track & Hardware Kits

Bypass doors slide past one another on parallel tracks, saving space in closets, pantries, laundry rooms and other interior openings. Choose durable aluminum tracks and smooth-rolling hangers for reliable everyday use.

View Our Bypass Hardware Installation Instructions

Also considering folding doors? See our Bifold and Multifold Hardware Comparison Guide

Features & Performance

  • Strong tracks: Heavy-duty extruded aluminum with two parallel tracks.
  • Series 1 hangers: 4-wheel ball-bearing hangers rated for doors up to 250 lb.
  • Stable operation: Jump-proof track design helps keep rollers securely on track.
  • Adjustable fit: Adjustable components help align the doors.
  • Bottom guidance: Floor guides help keep the doors steady.

What's Included

  • Tracks and hangers
  • Floor guides
  • Flush pulls
  • Wrench and mounting screws

Choose a soft-close and soft-open kit when you want controlled movement at both ends of travel.

Available Kit Options

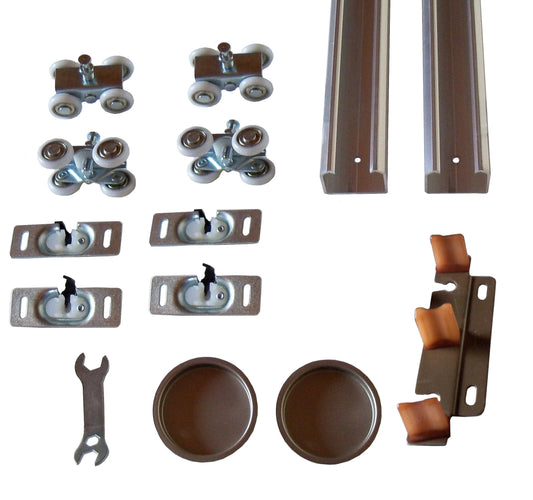

  • Series 1 Heavy-Duty Bypass Kit: 4-wheel ball-bearing hangers.
  • Series 1 with Soft Close & Soft Open: Controlled closing and opening.

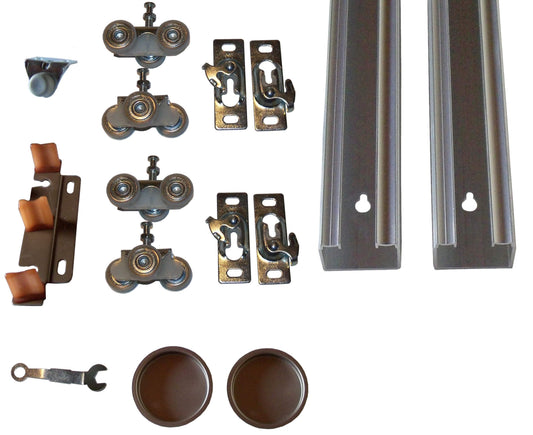

  • Series 2 Heavy-Duty Bypass Kit: 3-wheel ball-bearing hangers.

Measure & Plan Before Ordering

  • Door fit: Confirm each door's weight and thickness against the selected kit's specifications, including any soft-close or soft-open limits.
  • Opening width: Measure the opening and size the panels to allow 1/2 to 1 inch of overlap.
  • Service access: Follow the installation instructions for track length and clearance needed to remove hangers or soft-close components.
  • Final adjustment: Align the tracks, adjust the hangers and position the floor guides for smooth travel.
