Series 1 HBP HD Pocket Door Track and Hardware w/ SOFT CLOSE & SOFT OPEN

Series 1 HBP HD Pocket Door Track and Hardware w/ SOFT CLOSE & SOFT OPEN

$133.00 USD
$133.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

HARTFORD BUILDING PRODUCTS • SERIES 1

Heavy-Duty Pocket Door Track & Hardware Kit

Soft Close & Soft Open Included

Give your pocket door smooth, controlled movement in both directions. This kit combines heavy-duty aluminum track with soft-close and soft-open hardware for home renovations and new construction.

Up to 220 lb per door 30-inch minimum door width Lifetime warranty

Check your door width: Both mechanisms require a door at least 30 inches wide. This combination will not fit narrower doors.

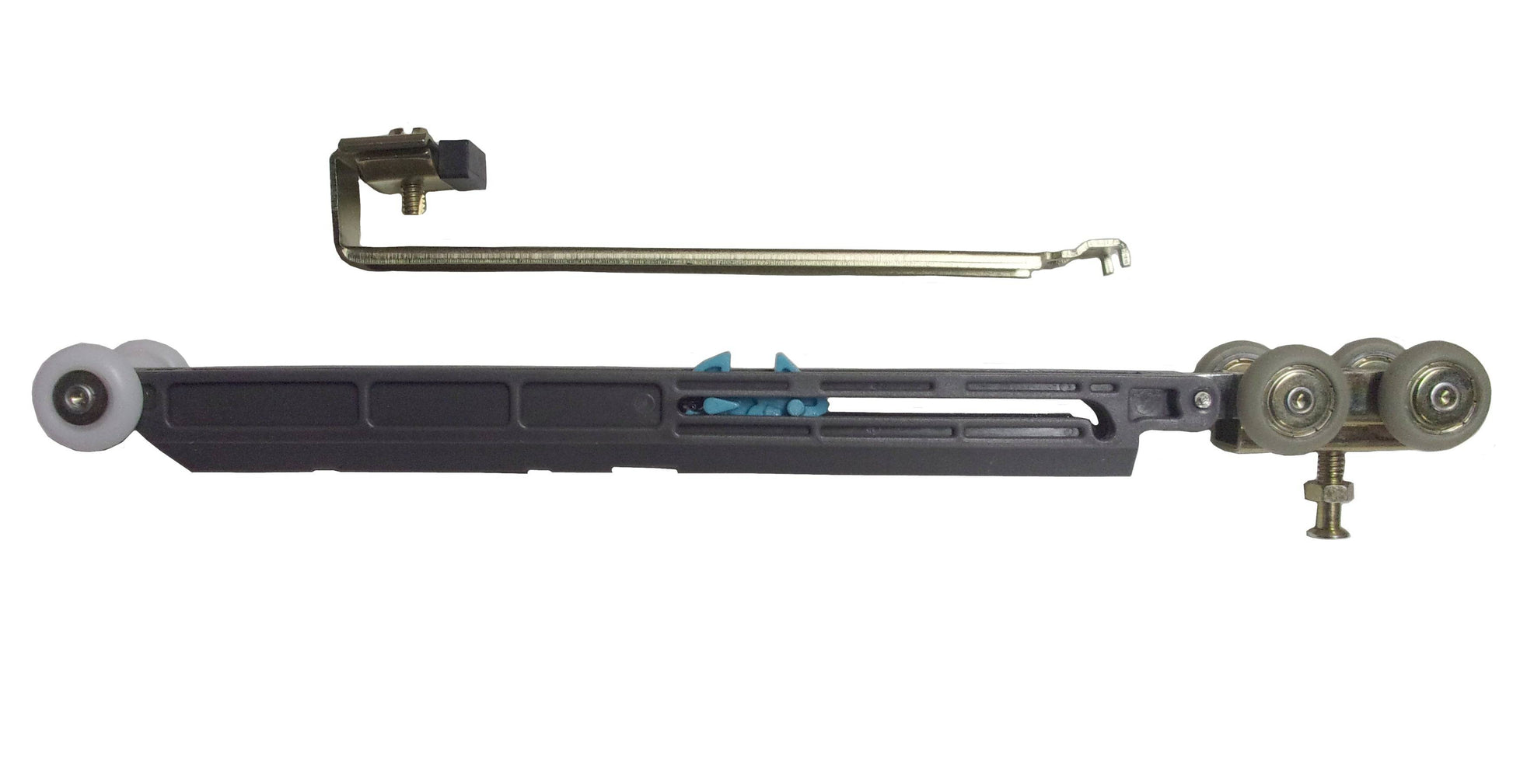

Soft Close

Slows the door near the end of closing, then gently pulls it into the fully closed position.

Soft Open

Slows the door as it slides back into the wall pocket for a controlled finish to opening.

Specifications & Fit

Door weight
Up to 220 lb per door
Door width
30 inches or wider
Door thickness
Fits 1 3/8- and 1 3/4-inch doors; minimum thickness is 1 inch
Wall framing
2 × 4 or 2 × 6 interior walls
Applications
Single and double pocket door systems
Track

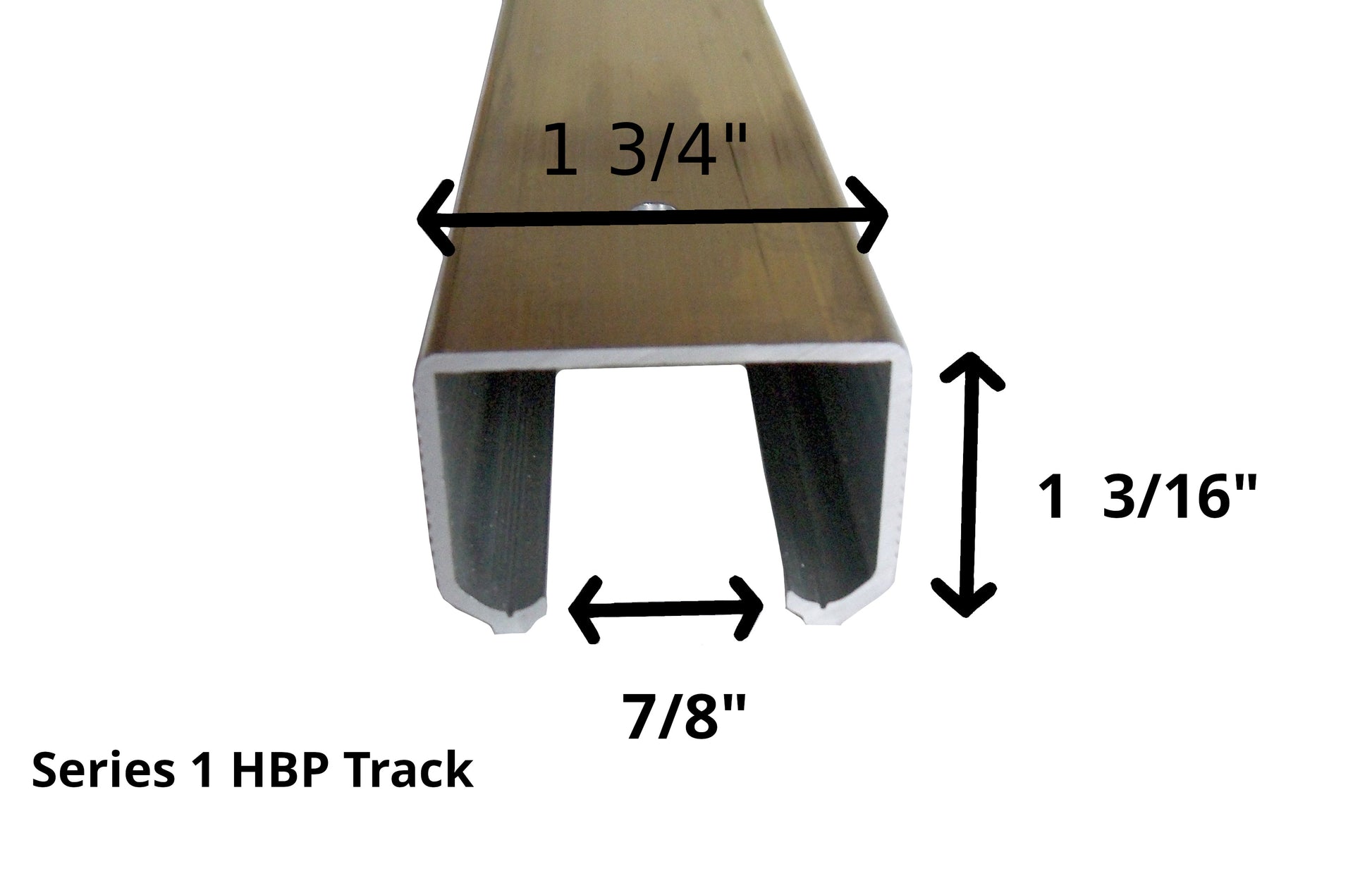

Precision-extruded aluminum box track with a jump-proof design
Warranty
Lifetime warranty

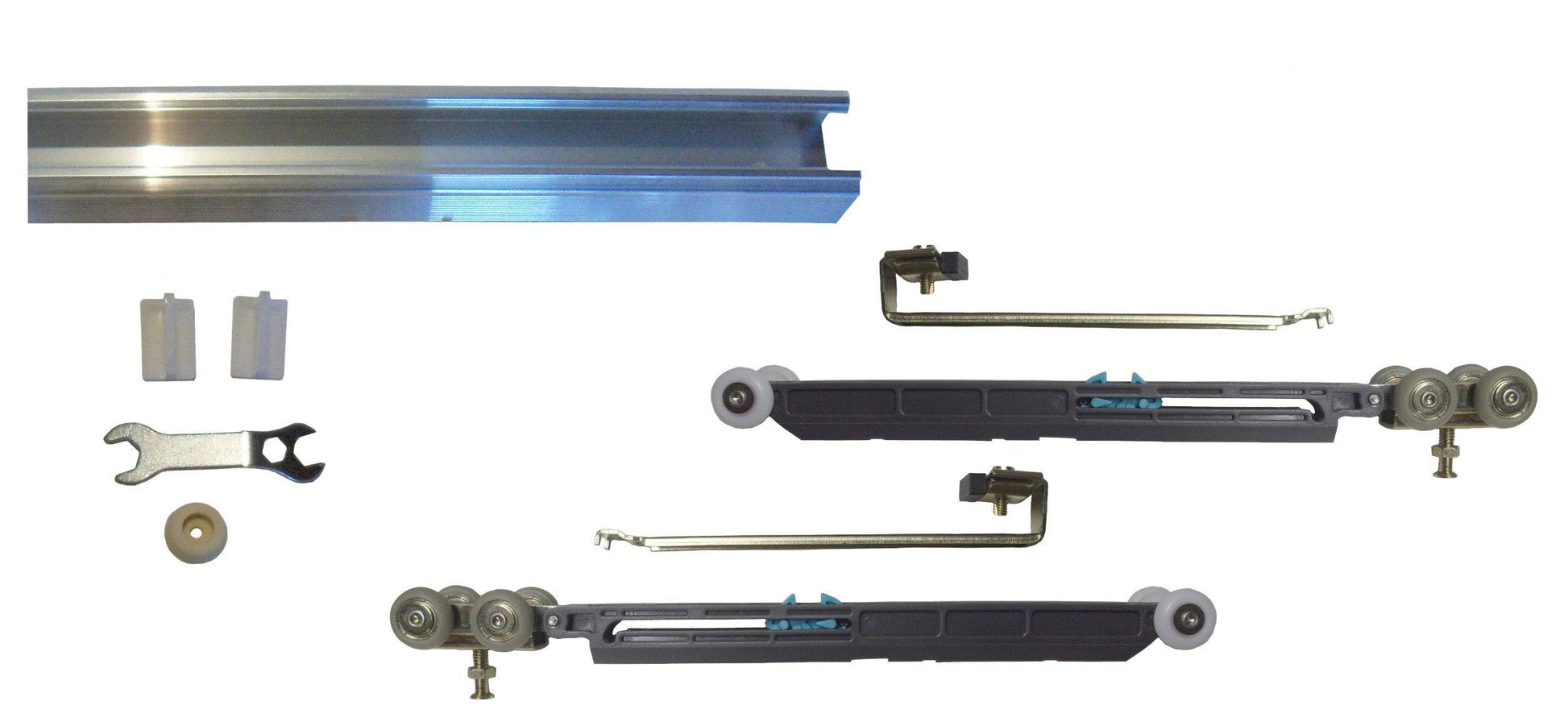

What’s Included

  • 1 extruded aluminum track
  • 1 4-wheel soft-close unit
  • 1 4-wheel soft-open unit
  • 1 door stop
  • 2 door guides
  • 1 wrench

Built for Your Project

  • Secure tracking: The heavy-duty box track helps keep the hardware on track during operation.
  • Cut-to-fit flexibility: Shorten the track for in-between sizes while maintaining the 30-inch minimum door width.
  • Commercial-grade quality: Durable hardware backed by a lifetime warranty.

Before You Order

  1. Measure your door: confirm its width and thickness.
  2. Check its weight: each door must weigh no more than 220 lb.
  3. Confirm your wall framing: this kit fits 2 × 4 or 2 × 6 interior walls.
  4. Plan your layout: confirm the track length and hardware quantities needed for your single or double pocket door installation.
