HBP Double 2x4 Pocket Door Frame Kit with Soft Close and Soft Open
Create a smooth, quiet, and space-saving double pocket door installation with the HBP Double 2x4 Pocket Door Frame Kit with Soft Close and Soft Open . Designed for standard 2x4 walls, this heavy-duty kit includes the components needed to install two converging pocket doors with controlled opening and closing.
A Complete Double Pocket Door Frame Kit
This HBP double pocket door system combines two single pocket door frame kits with a converging door kit. The converging kit joins the two frames together, allowing the doors to meet neatly in the center of the opening.
Built-in stops help prevent the doors from traveling past the middle, providing a clean and properly aligned double-door installation.
The frame kit is available for doors measuring 80, 84, or 96 inches high and is compatible with doors that are 1-3/8 or 1-3/4 inches thick.
View the HBP Double 2x4 Pocket Door Frame Kit

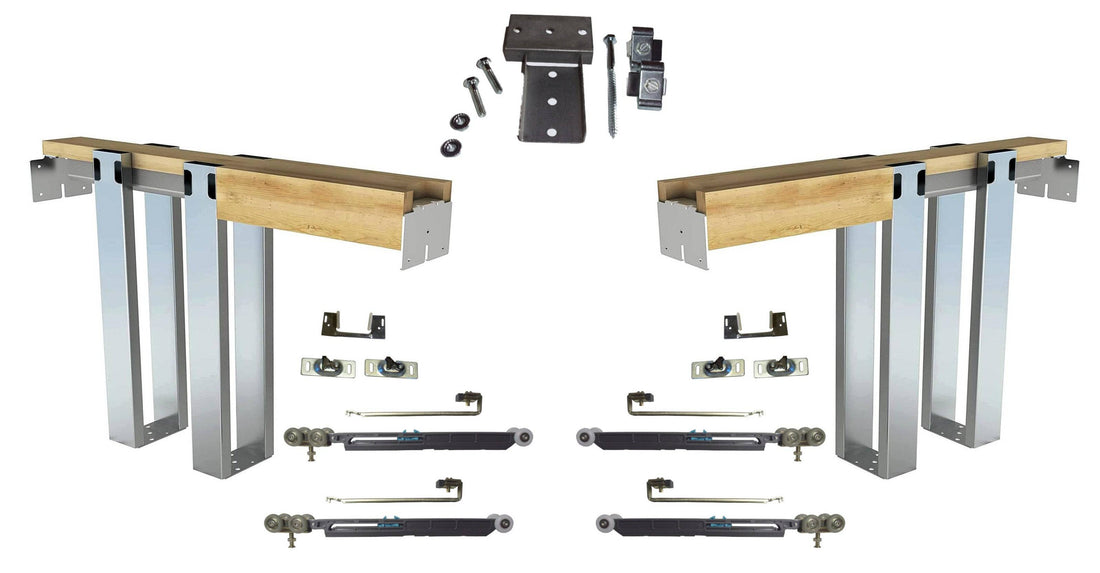

What Is Included?
- Two HBP pocket door frame kits
- One converging door kit
- Two Soft Close units
- Two Soft Open units
- Galvanized all-steel studs
- Hidden bottom pocket door guides
- Solid wood headers attached to the track and roller system
With both Soft Close and Soft Open hardware included for each door, the complete system helps provide controlled movement at both ends of the track.
Soft Close for Smooth, Controlled Closing
The four-wheel ball-bearing Soft Close system allows each pocket door to slide normally along the track. As the door approaches the jamb, the Soft Close mechanism engages and slowly pulls the door into the fully closed position.
This controlled movement helps reduce hard impacts against the jamb and creates a quieter, smoother experience when closing the doors.
Soft Open Helps Prevent Slamming Inside the Pocket
The Soft Open system controls the door as it reaches the back of the wall pocket. It helps keep the door from slamming against the rear stud inside the wall.
Soft Close and Soft Open use the same type of mechanism. The unit is simply installed in the opposite direction in the track, depending on whether it is controlling the opening or closing movement of the door.
Heavy-Duty Construction for Dependable Performance
The HBP Double Pocket Door Frame Kit is designed for standard 2x4 wall construction and supports doors weighing up to 200 pounds.
Galvanized all-steel studs provide a strong framework around the door pocket, while the solid wood header is attached to a track featuring a ball-bearing roller system. Together, these components create a durable installation designed for smooth and dependable operation.
Browse the complete selection of HBP pocket door frame kits for additional wall sizes, door configurations, and hardware options.
Hidden Bottom Pocket Door Guides
Hidden bottom pocket door guides are included with the frame kits. Each guide fastens between the steel studs and behind the pocket door jambs, keeping the hardware concealed after installation.
The guide is made from thin steel and includes two fixed nylon guides to help keep the door aligned as it travels in and out of the wall pocket.
Guides are available for both 1-3/8-inch and 1-3/4-inch-thick doors. Minor adjustments for door thickness can be made by moving the guide up or down during installation.
Where Can a Double Pocket Door Be Used?
Double pocket doors are an excellent choice for wide interior openings where you want to preserve usable floor space. Because the doors slide into the wall instead of swinging into the room, they can provide a clean and open appearance without requiring a large swing area.
Popular applications include:
- Dining rooms and living rooms
- Home offices
- Primary bedroom and bathroom entrances
- Closets and dressing rooms
- Pantries and laundry rooms
- Room dividers and flexible living spaces
- Residential remodeling and new construction projects
Complete Your Installation with Heavy-Duty Pocket Door Pulls
Finish your double pocket door project with durable pocket door pulls from Hartford Building Products. Choose a passage function for doors that do not need to lock or a privacy function for bathrooms, bedrooms, and other areas where locking is desired.
Round Heavy-Duty Pocket Door Pulls
HBP round pocket door pulls feature a built-in edge pull and fit a standard 2-1/8-inch door bore.
Rectangular Heavy-Duty Pocket Door Pulls
For a traditional rectangular profile, choose an HBP heavy-duty pocket door pull in either passage or privacy operation.
You can also browse the complete pocket door pulls, locks, edge pulls, and flush pulls collection .
Build a Smoother Double Pocket Door System
With two heavy-duty pocket door frames, galvanized steel studs, a converging door kit, hidden door guides, and Soft Close and Soft Open hardware for both doors, this HBP kit offers a complete solution for a double pocket door opening.
It is a practical choice for contractors, remodelers, builders, and homeowners who want strong construction, smooth operation, and controlled door movement in a space-saving design.
