Bypass Doors and Bypass Hardware
Bypass Door Systems
Overview

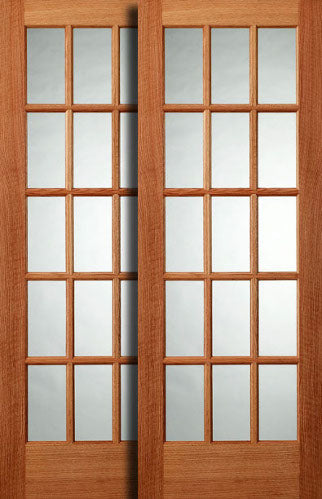

Bypass doors typically consist of two panels that slide past each other within the same opening. Because fewer doors are used compared to bifold systems of the same width, each panel is generally wider.
-
Example: A 6-foot opening typically uses two 3-foot (36") doors
In custom applications, three or more doors can also be used.
Sizing Considerations
Proper sizing is important for smooth operation and adequate door overlap.
-
Openings may need to be slightly undersized to allow proper overlap between panels
-
Alternatively, one door can be made wider to achieve the desired fit
Example:
-
A 5-foot opening may use a 30" or 32" door, depending on layout and installation requirements
Hardware Options
You can pair bypass doors with our Heavy Duty Bypass Track and Hardware Systems for reliable performance.
Soft Close & Soft Open Features
Soft Close
-
4-wheel system
-
Allows the door to slide freely, then gently pulls it into the closed position against the jamb
Soft Open
-
4-wheel system
-
Helps prevent the door from slamming into the back of the opening or stud
Accessories
For easy operation, consider adding:
Available in multiple finishes to match your design.
