We carry Heavy Duty Bypass Track and Hardware Kits
Make sure to check out our Series 1 Bypass Track and Hardware kits. Bypass doors are a smart, space-saving solution for closets and other interior openings. Unlike bifold doors, bypass doors typically use two larger door panels that slide past one another within the opening. Because fewer panels are used, each door is usually wider.
For example, a 6-foot-wide closet opening would typically use two 3-foot-wide doors, each measuring 36 inches wide, to cover the full opening.
One important detail to keep in mind with bypass door installations is door overlap. In some cases, the opening may need to be slightly undersized, or one of the doors may need to be wider, so the doors overlap properly when closed. For example, a 5-foot-wide opening may use a 30-inch or 32-inch door depending on the desired fit and overlap.
Important Installation Note
The track and hardware require approximately 1 3/4 inches to 2 1/4 inches of space from the top of the door to the installed track location. The rollers are adjustable, allowing you to fine-tune the door height during installation.
Product Features
The HBP Bypass Hardware Kit is designed for 1 3/8-inch to 1 3/4-inch thick doors and offers durable, smooth, and reliable operation.
Key features include:
- Heavy-duty extruded aluminum track
- Four-wheel ball bearing hangers
- New and improved ball bearing rollers with axles
- Jump-proof twin-channel design
- “V”-shaped rails for smooth sliding performance
- Two separate tracks for a custom fit
- Supports up to 250 lbs. per door

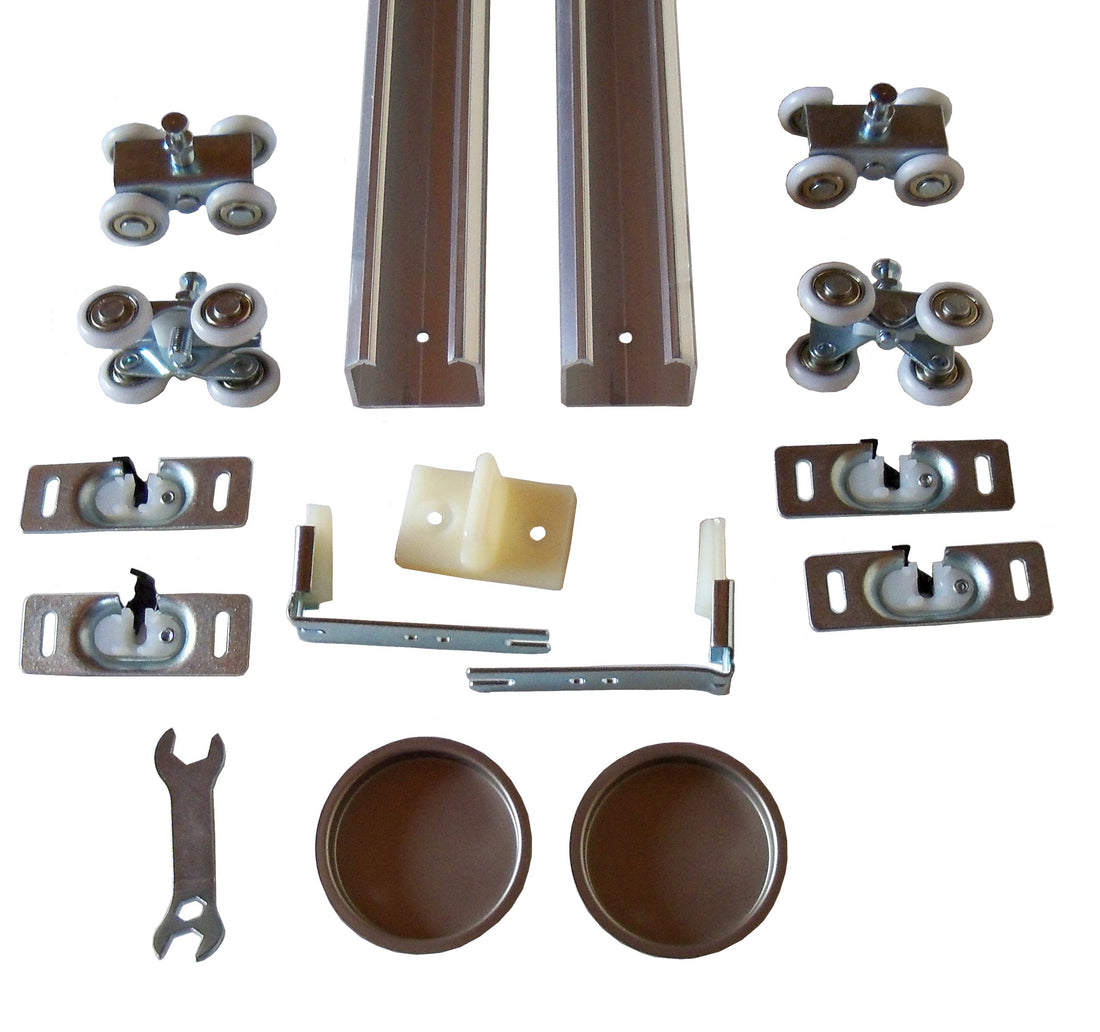

What’s Included in the Set
Each kit includes:
- 2 heavy-duty aluminum double box tracks
- 4 four-wheel ball bearing hangers
- 1 adjustable floor guide, adjustable from 3/4 inch to 1 3/4 inches
- 2 flush cups
- All required screws and wrench
- Track size: 1 1/8 inches high x 1 3/4 inches wide each
A Strong Hardware Solution for Bypass Doors
The HBP Bypass Hardware Kit is built for strength, durability, and smooth operation. Whether you are installing closet doors, room dividers, or other sliding bypass door applications, this kit provides the reliable hardware needed for a clean, functional installation.
