Heavy Duty Series 1 Bypass Track and Hardware Kits

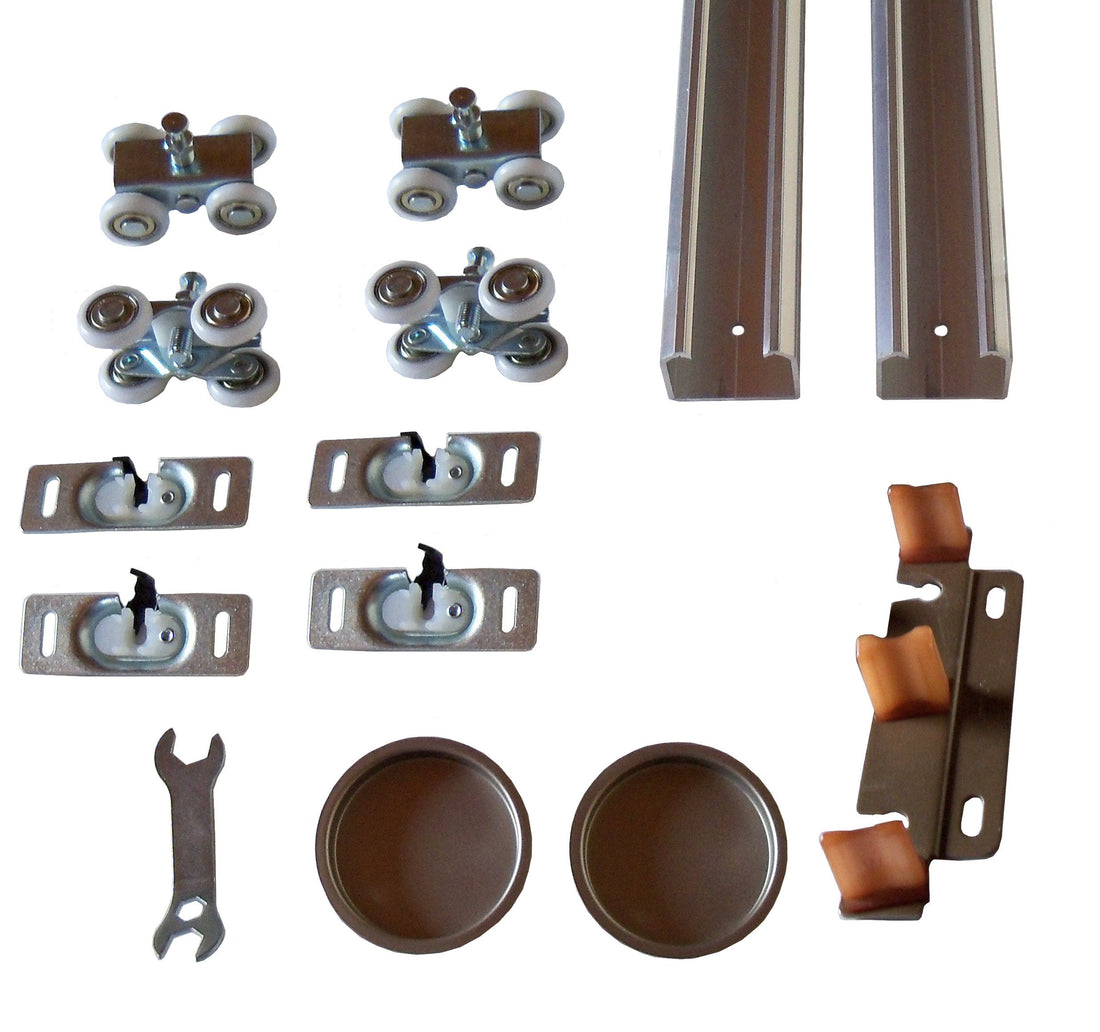

Series 1 - HBP  Heavy- Duty BYPASS Track & Hardware Kits

Our Series 1 HBP Bypass Systems are designed for smooth, reliable performance in sliding door applications.

How Bypass Doors Work

Bypass doors typically consist of two doors that slide past each other within the same opening.

• Because fewer doors are used compared to bifold systems, each door is usually wider

• Example: A 6' wide opening would typically use two 36" doors

Sizing Considerations

When planning a bypass installation:

• The opening may need to be slightly undersized to allow proper door overlap

• Alternatively, you can use wider doors

• Example: For a 5' opening, you might use 30" or 32" doors

Installation Details

• Track and hardware require 1-3/4" to 2-1/4" of space above the door

• Adjustable rollers allow for fine-tuning door height

Product Features

• Designed for 1-3/8" to 1-3/4" thick doors

• Heavy-duty extruded aluminum track

• 4-wheel ball bearing hangers for smooth operation

• New and improved ball bearing rollers with axles

• Jump-proof twin channel design with “V”-shaped rails

• Integral dual tracks for a custom fit

• Supports up to 250 lbs per door

Availability

This hardware is in stock and ready to ship.
