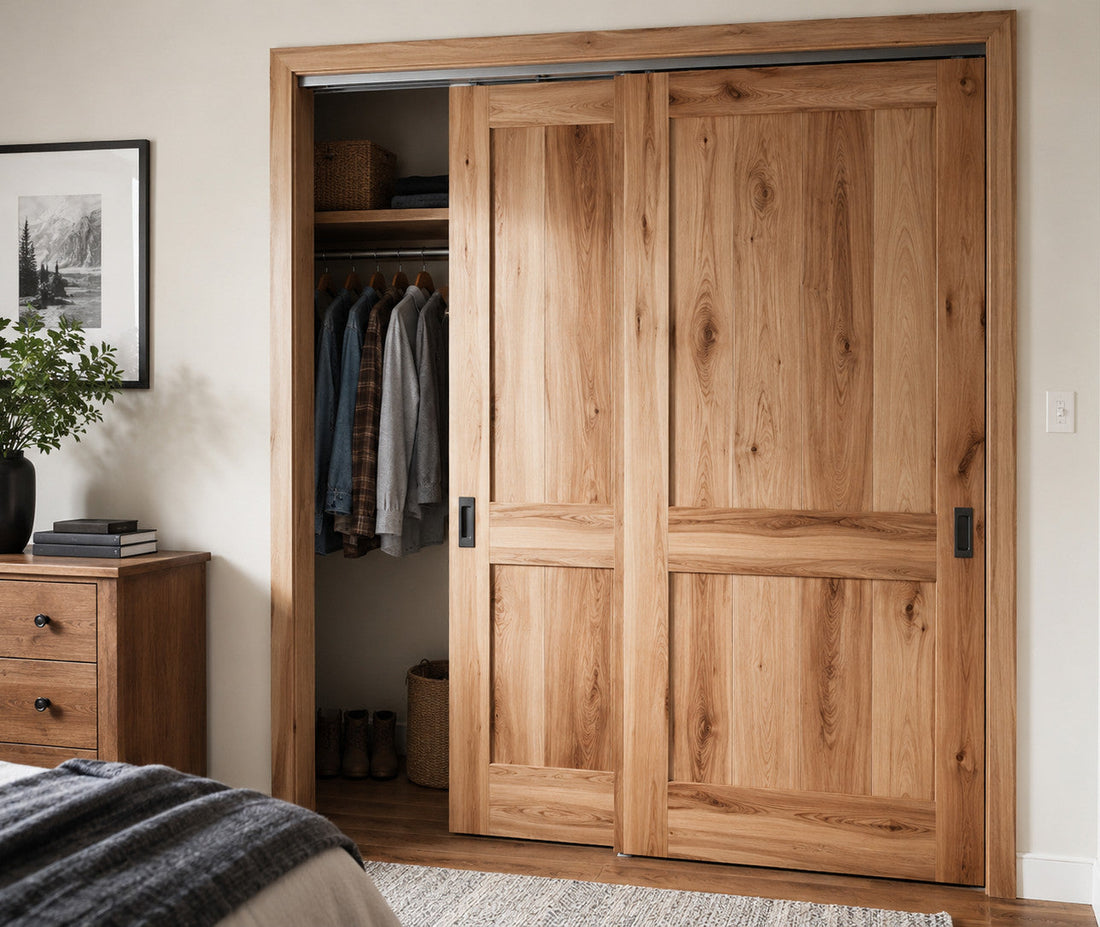

Heavy Duty Bypass Track Systems to Fit Your Closet Door Needs

A Heavy-Duty Solution for Bypass Door Installations

Bypass doors are a practical and space-saving option for closets and other openings where swinging doors may not be ideal. A typical bypass installation uses two doors that slide past one another, allowing access to either side of the opening.

Because a bypass system generally uses fewer doors than a bifold system of the same width, each individual door is usually wider. For example, a 6-foot-wide closet opening would typically use two 36-inch-wide doors.

Planning for Door Overlap

One important consideration when installing bypass doors is the amount of overlap between the doors. The doors need to overlap slightly when closed so there is no visible gap between them.

Depending on the opening, this may require adjusting the finished opening size or selecting doors with slightly different widths. For example, a 5-foot-wide opening may use a combination of 30-inch and 32-inch doors to provide the proper coverage and overlap.

Careful measuring before installation will help ensure smooth operation and a clean finished appearance.

Track and Hardware Clearance

Important: The track and hardware require approximately 1 3/4" to 2 1/4" of clearance from the top of the door to the track mounting location.

The roller hangers are height-adjustable, allowing the doors to be fine-tuned during installation for proper alignment and smooth operation.

HBP Bypass Hardware Kit Features

The Series 1 HBP Bypass Hardware Kit is designed for durable, dependable operation with heavier doors.

• Designed for doors 1 3/8" to 1 3/4" thick
• Heavy-duty extruded aluminum track
• Four-wheel ball-bearing hangers for smooth operation
• New and improved ball-bearing rollers with axles
• Jump-resistant twin-channel design
• “V”-shaped rails for consistent roller tracking
• Two separate tracks for greater installation flexibility
• Supports doors weighing up to 250 lbs. each

What’s Included

Each HBP Bypass Hardware Kit includes:

• 2 heavy-duty aluminum double-box tracks
• 4 four-wheel ball-bearing hangers
• 1 adjustable floor guide, adjustable from 3/4" to 1 3/4"
• 2 flush cups
• All required screws
• Adjustment wrench

Track Dimensions

Each track measures approximately:

1 1/8" high × 1 3/4" wide

Whether you're installing a new bypass door system or upgrading existing hardware, the Series 1 HBP Bypass Hardware Kit provides the strength, adjustability, and smooth operation needed for a professional-quality installation.
