Series 1 HBP Bifold Track and Hardware Kits

Regular price $35.00

Installation Instructions

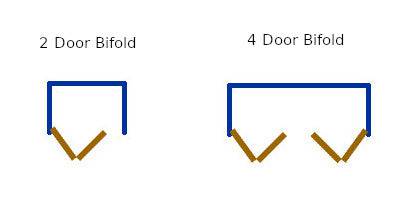

Our Heavy Duty  Bifold  Hardware is very durable  and is for residential and commercial grade.  Bifold doors are composed of  2 sections or 4 sections of folding doors for use in a closet. They are always in pairs and fold to the left, right, or in a double pair, fold to the left and the right sides.

Details

  • Top Mounted
  • For 1 3/8”  to 1 3/4”
  • Weight Capacity:  125 lbs. per panel

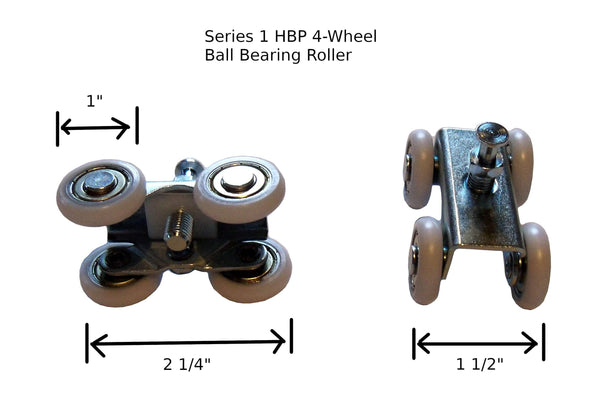

  • 4- Wheel Ball Bearing Hangers -  ride smoothly and quietly on track

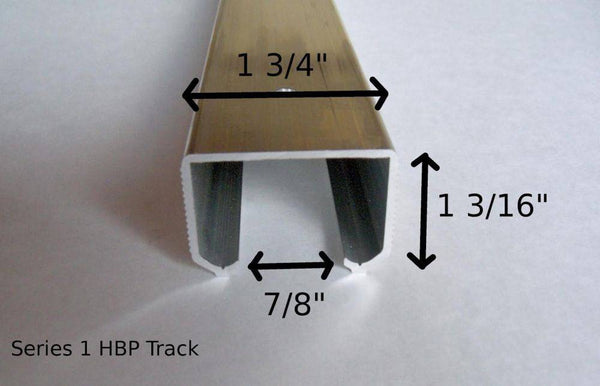

  • Box Track-   Heavy Duty Aluminum track for smooth operation.   Box design means that the rollers will not jump off the track.
  • Lifetime Warranty

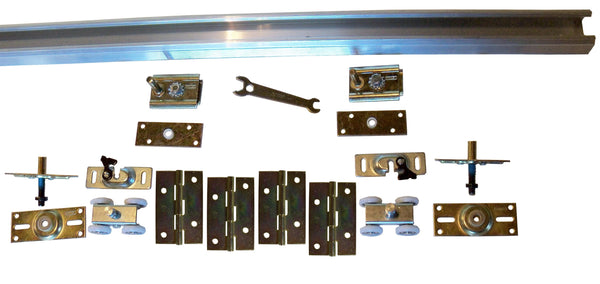

2- Door Sets Includes the Following Items:

  • 1- Heavy Duty Aluminum Track
  • 1- 4 Wheel Ball Bearing Hangers
  • 1- Top Pivot  assembly  &  Bottom Pivot Assembly
  • 2- Panel Hinges
  • 1- Stop
  • 2- Wrenches and Screws

 4- Door Sets Includes the Following Items:

  • 1- Heavy Duty Aluminum Track
  • 2- 4 Wheel Ball Bearing Hangers
  • 2- Top Pivot  assembly  &  Bottom Pivot Assembly
  • 4-Panel Hinges
  • 2- Door  Aligner
  • 2- Stops
  • 4-Wrenches and Screws
