BP- Premium - DOUBLE- Pocket Door Frame Kits- with Soft Close & Soft Open- 400 lbs - 2 x 6

 For  1 3/8" and 1 3/4" Thick Doors

 Door Heights available-  80" ,  84"  and 96"

 Door Widths:   32",  34",  36",  42"  and 48"

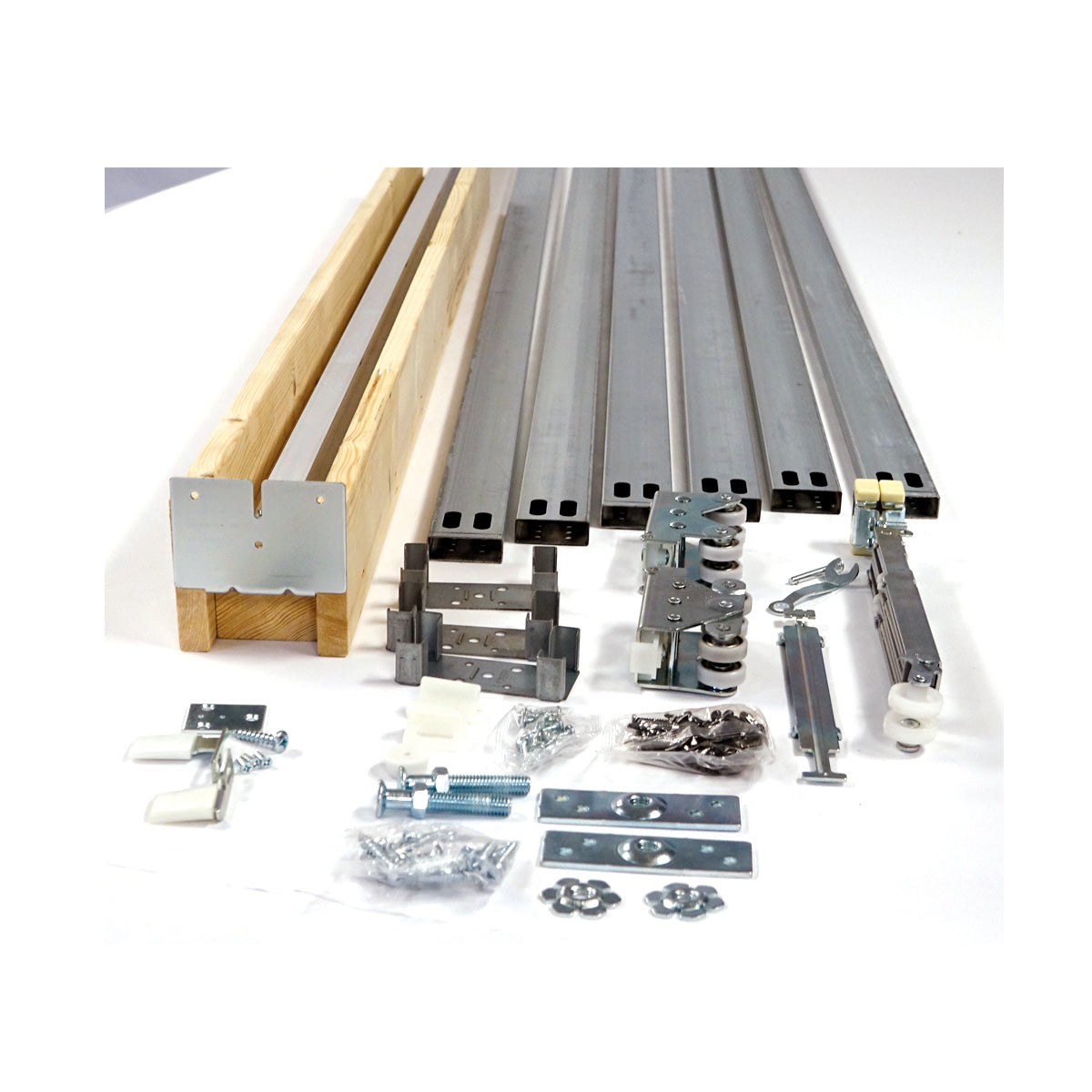

KIT INCLUDES-    2- Pocket Door Frame Kit

                             2-  Soft Close

                             2- Soft Open

                             2- Hidden Pocket Door Guide

Pocket Door Frame Kit Instructions

4- Wheel Ball Bearing Soft Close  - Slides normally until Soft Close mechanism slowly pulls door into closed position against jamb.

4- Wheel Ball Bearing Soft Open- Keeps door from slamming against stud in back of door in wall.

Wall-  For standard  2 x  6  Walls

Weight Limits-  330 lbs Weight Limit

Studs-   Steel Studs

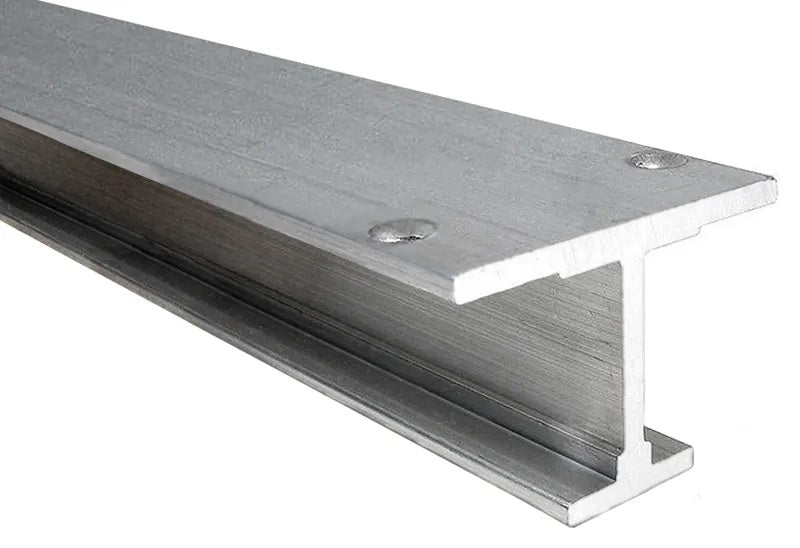

Track-   I Beam

Headers-   Solid  Wood  Header

Hidden Pocket Door Guide - Hidden Bottom Pocket Door Guide Kit - fastens in between our Steel Studs and  behind the Pocket Door Jambs. Made with thin steel with 2- fixed Nylon Guides.

Available for  1 3/8" and 1 3/4" Thick Doors. For minor adjustments in door thickness, move guide up or down. ** These are included with our Frame Kits

 **NOTE: Soft Close & Soft Open are the same units turned the opposite direction in the track
