HBP-DOUBLE- Pocket Door Frame Kit with Soft Close and Soft Open -2 x 4 ( 80", 84" and 96"Height Doors)

Hartford Building Products

Regular price $352.00

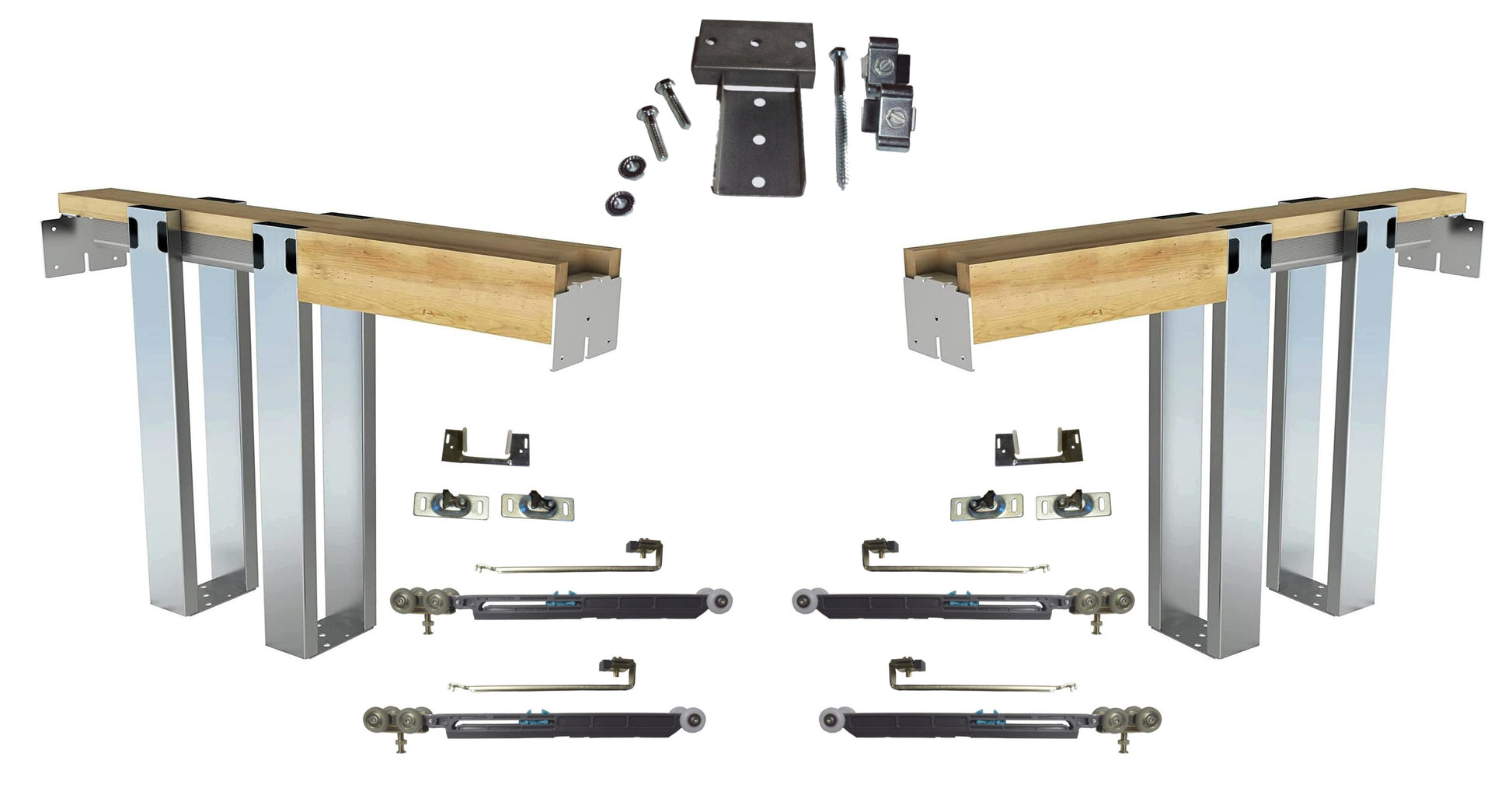

HBP-  Pocket Door Frame Kit - DOUBLE  with SOFT CLOSE and SOFT OPEN

- 2 x 4 Construction

Door Heights available-  80",  84" and 96"

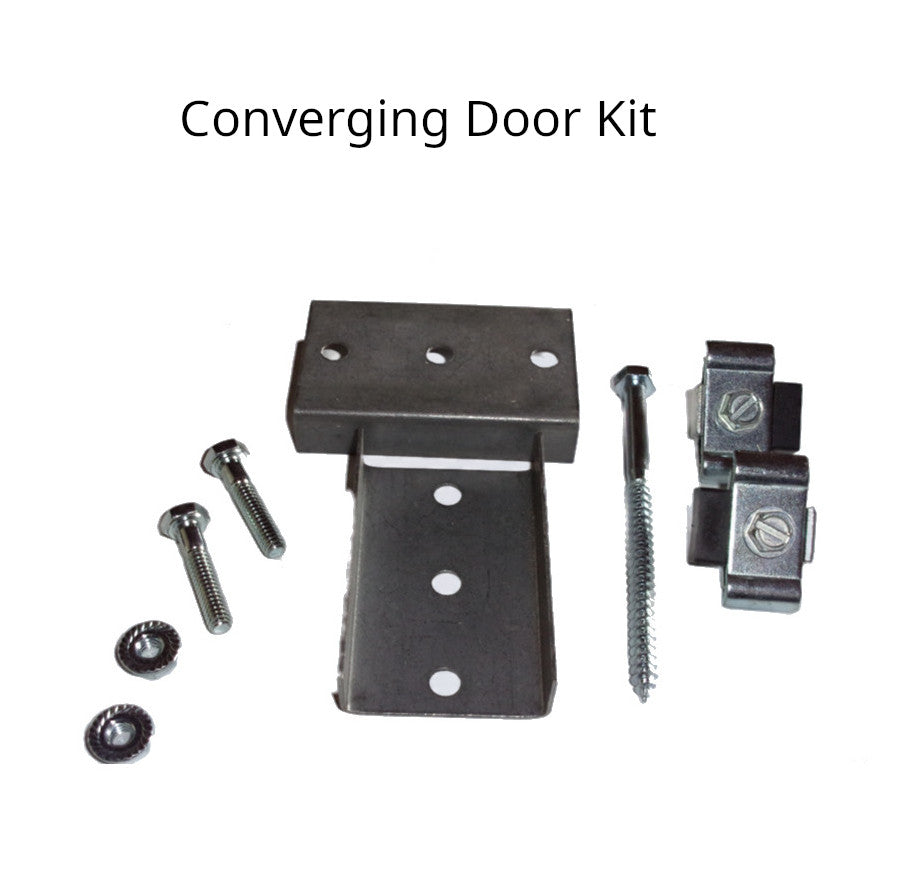

KIT INCLUDES-    2- Pocket Door Frame Kit  with CONVERGING DOOR KIT

                            2-  Soft Close

                            2- Soft Open

Wall-  For standard  2 x 4 Walls


Weight Limits-   200 lbs Weight Limit


Studs-   Galvanized all Steel Studs



Headers-   Solid  Wood  Header attached to Track with Ball Bearing Roller



Hidden Pocket Door Guide - Hidden Bottom Pocket Door Guide Kit - fastens in between our Steel Studs and  behind the Pocket Door Jambs. Made with thin steel with 2- fixed Nylon Guides.


Available for  1 3/8" and 1 3/4" Thick Doors. For minor adjustments in door thickness, move guide up or down. ** These are included with our Frame Kits

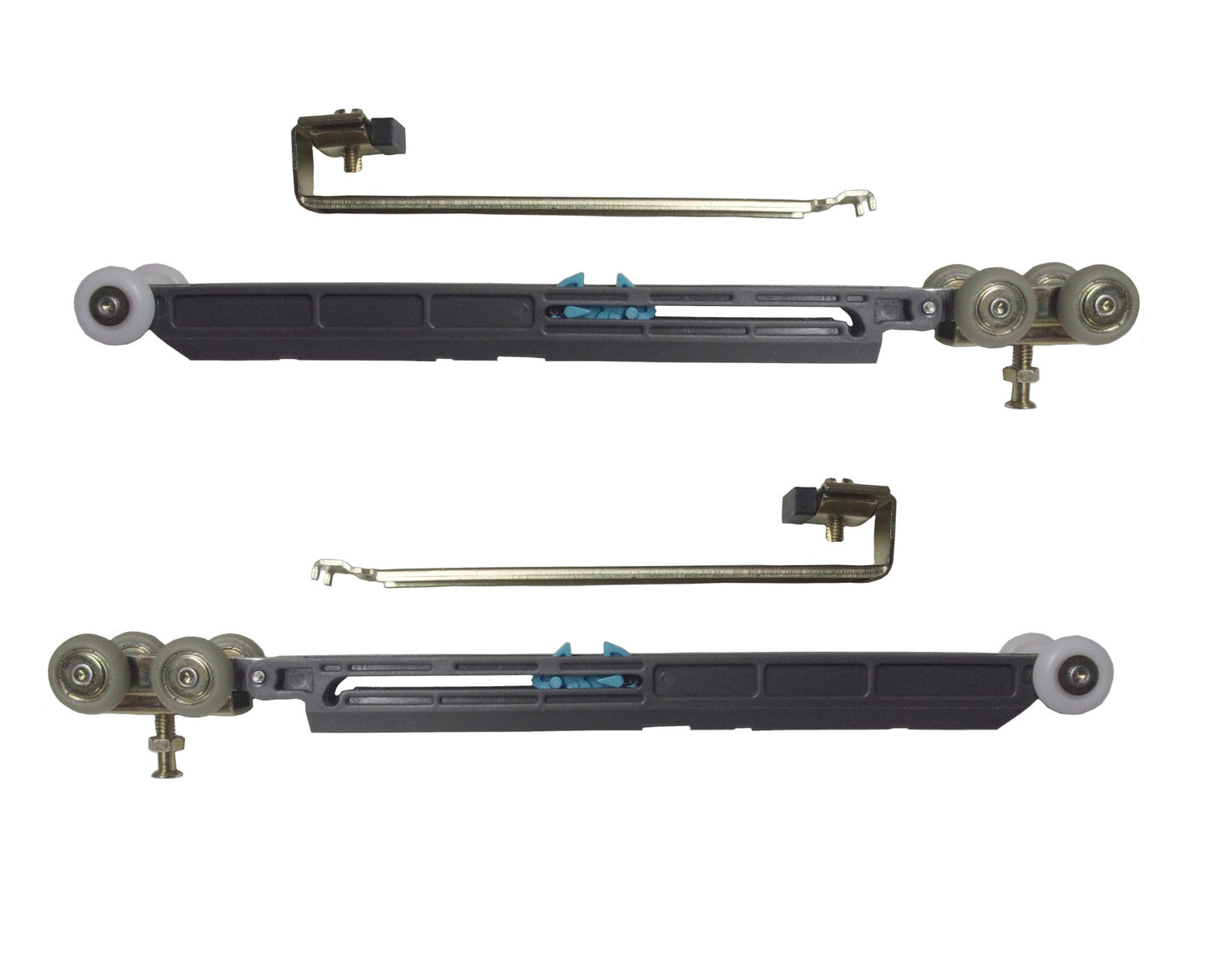

4- Wheel Ball Bearing Soft Close - Slides normally until Soft Close mechanism slowly pulls door into closed position against jamb.


4- Wheel Ball Bearing Soft Open- Keeps door from slamming against stud in back of door in wall.

**NOTE: Soft Close & Soft Open are the same units turned the opposite direction in the track




For Double Pocket Doors-  Soft Close or Soft Open will accommodate    30" wide doors and up.
