Series 2- HBP Bypass Hardware Kit- 3- Wheel Ball Bearing Hangers

Hartford Building Products

Regular price $133.00


Series 2- HBP Bypass Hardware Kit - 3- Wheel Ball Bearing Hangers

Bypass doors are composed of two doors normally that slide past each other in the door opening.  Since there are less doors used than in a Bifold of the same size, each door is normally wider,  For instance, a 6' wide closet would have two  3' (36" ) wide doors to make up the width.

A thing to also remember is when using a Bypass door installation, the opening may have to be undersized slightly, to allow for an overlap, or make one of the doors wider, Example, using a 32" or 30" wide door for a 5' wide opening.


NOTE:

The track and hardware takes up from  1 3/4"  to  2 1/4"  - From the Top of the Door to where you install the track.       You can adjust the height of the rollers.



Installation Instructions

  • For 1 3/8” to 1 3/ 4” Thick Doors
  • Track is Heavy Duty Extruded Aluminum
  • 3­ Wheel Ball Bearing Hangers
  • **New and Improved Ball Bearing Rollers with Axles
  • Jump proof twin Channel Design, with “V” shaped Rails and Integral
  • Two separate tracks for custom fit
  • Up to 200 lbs Per Door

Set Includes the following Items:

  • 2 Heavy Duty Aluminum Double Box Tracks
  • 4 -  Four ( 3- Wheel Ball Bearing Hangers  )
  • 1 Adjustable Floor Guide.   Adjusts from 3/4” to 1 3/4”
  • 2 Flush Cups
  • Includes all Screws and Wrench

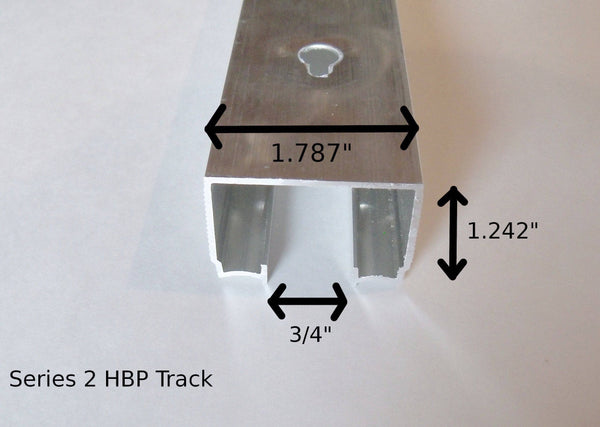

  • Track Size-  1 1/8" High  x  1 3/4" Width each
***We reserve the right to substitute parts of equal or better quality***
